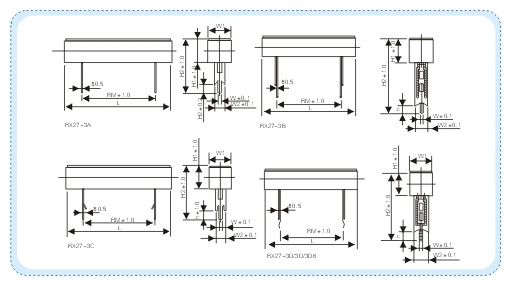

· 外形尺寸

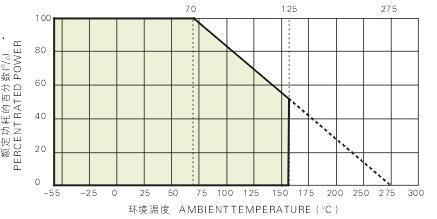

· 降功耗曲线
· 技术说明
| 型号 Type | 额定功率 Rate Power(W) Ambient Temperature=70℃ | 阻值范围 Resistance Range(Ω) | 外形尺寸 Dimensions(mm) | ||||||||||||||||||||||
| RX27-3 | RY27-3 | L | RM | H1 | H2 | H | W1 | W2 | W | ||||||||||||||||
| RX27(RY27) -3A/3B/3C/3D/3D5 | 3.0 | R2～2K4 | 390R～100K | 25.0±0.5 | 12.5 | 9.0 | 23.5/39.0/23.5/39.5/30.0 | 4.5±0.3 | 9.0±0.5 | 5/7.3 | 1.5 | ||||||||||||||
| RX27(RY27) -3A/3B/3C/3D5/3D8 | 5.0 | R22～3K6 | 680R～100K | 27.0±0.5 | 15.0 | 9.5 | 24.0/39.0/24.0/39.0/30.0/39.0 | 4.5±0.3 | 9.0±0.5 | 5/7.3 | 1.5 | ||||||||||||||
| RX27(RY27) -3A/3B/3C/3D5/3D6 | 7.0 | R39～4K7 | 680R～100K | 35.0±0.8 | 22.5 | 9.5 | 24.0/39.0/24.0/39.0/30.0/39.0 | 4.5±0.3 | 9.0±0.5 | 5/7.3 | 1.5 | ||||||||||||||
| RX27(RY27) -3A/3B/3C/3D5/3D6 | 10.0 | R39～6K8 | 1K0R～100K | 48.0±1.0 | 35.0 | 9.5 | 24.0/39.0/24.0/39.0/30.0/39.0 | 4.5±0.3 | 9.0±0.5 | 5/7.3 | 1.5 | ||||||||||||||
| RX27(RY27) -3A/3B/3C | 15.0 | R51～7K5 | ...... | 48.0±1.0 | 32.0 | 12.5 | 32.5/47.5/32.5 | 5.0±0.2 | 12.5±0.5 | 10/- | 2.7 | ||||||||||||||
| RX27(RY27) -3A/3B/3C | 20.0 | R51～10K | ...... | 63.5±1.2 | 47.5 | 12.5 | 32.5/47.5/32.5 | 5.0±0.2 | 12.5±0.5 | 10/- | 2.7 | ||||||||||||||
